Main technical parameters
Rated voltage: 220v, 380v, 66ov, 22oV/a8ov, 380V/66oV
Rated frequency: 50Hz Constant torque :3 ~ 50Hz; Constant power :50 ~ 6OHz(for 2p motors), 50 ~ 75Hz(4p of H355-4), 50 ~ 10OHz(4 ~ 8p except 355-4)
Protection class: IP55
Cooling method: IC416
Working system: S1
Explosion-proof class: Ex db l BT4 Gb

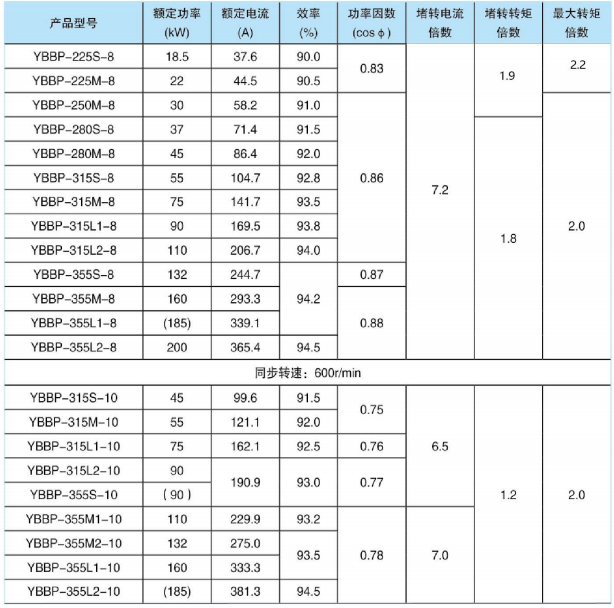

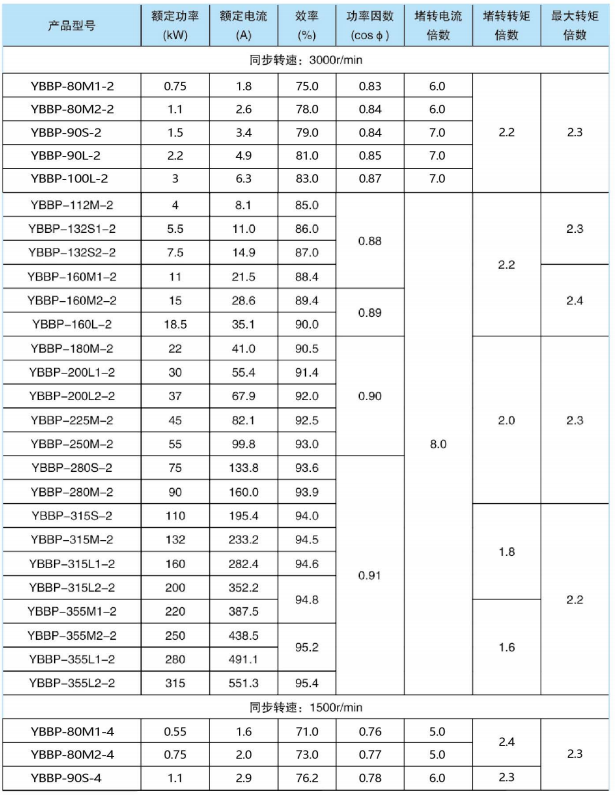

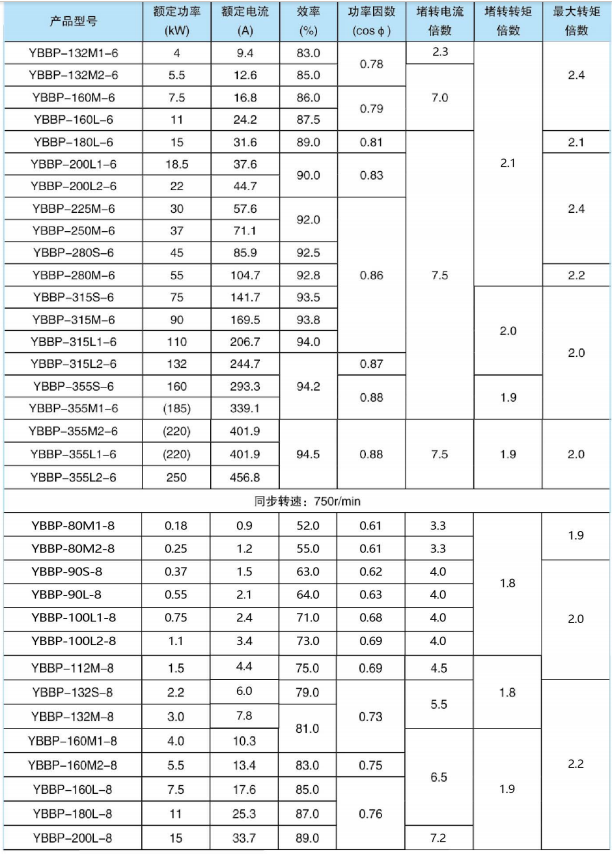

Parameters:

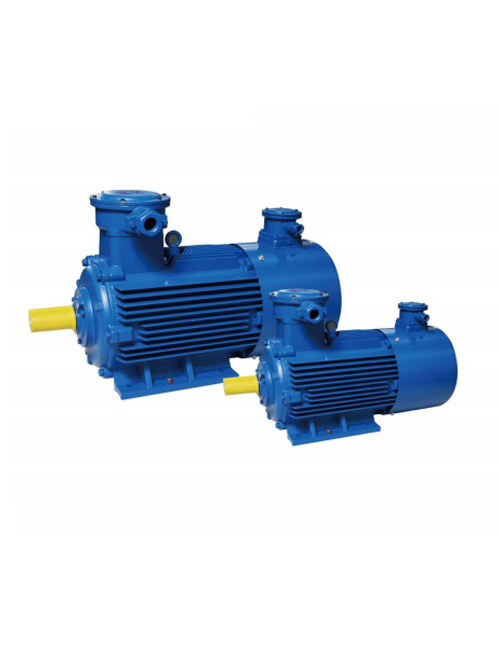

Flameproof 3E phase asynchronous motor for YBF3 series fans
Extended shaft YE2 series three-phase asynchronous motor (non-standard custom)
Permanent magnet synchronous electric spindle -MB system special
Permanent magnet synchronous motorized spindle motor --ED series internal motorized spindle
Permanent magnet synchronous electric locomotive milling electric spindle
